FX Racing Dual-Friction clutch kit comes with a full facing on the flywheel side for drivability and longevity, while a copper ceramic composite puck style (segmented) facing is used on the pressure plate side for a positive engagement and increased holding-capacity. Multi Friction is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Multi Friction has been engineered primarily as a street clutch it can be used in mild competition applications. FX Racing specifically designed high torque disc delivers maximum holding capacity without compromise. The sprung retainer assembly boasts heat treated 6 dual springs and severe duty retainer rivets, ensuring power and reliability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

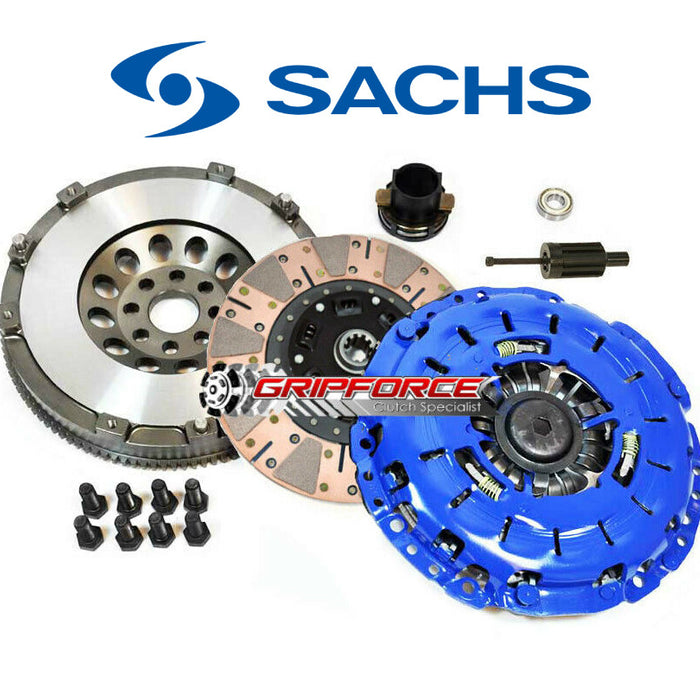

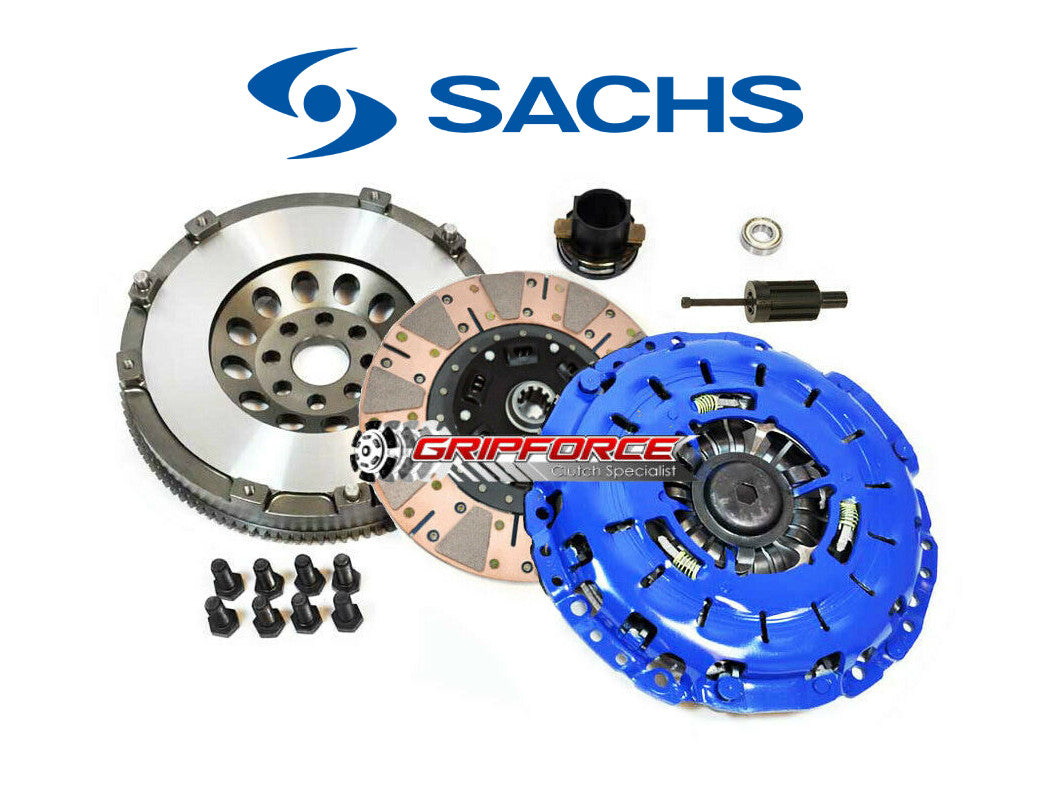

THIS COMPLETE CLUTCH KIT INCLUDES:

• **Sachs/Self-Adjusting Style that fits original DMF**
• FX Racing Heavy-Duty Pressure Plate
• FX Racing Heavy-Duty Dual-Fricion Clutch Disc (240mm, 10 spline)

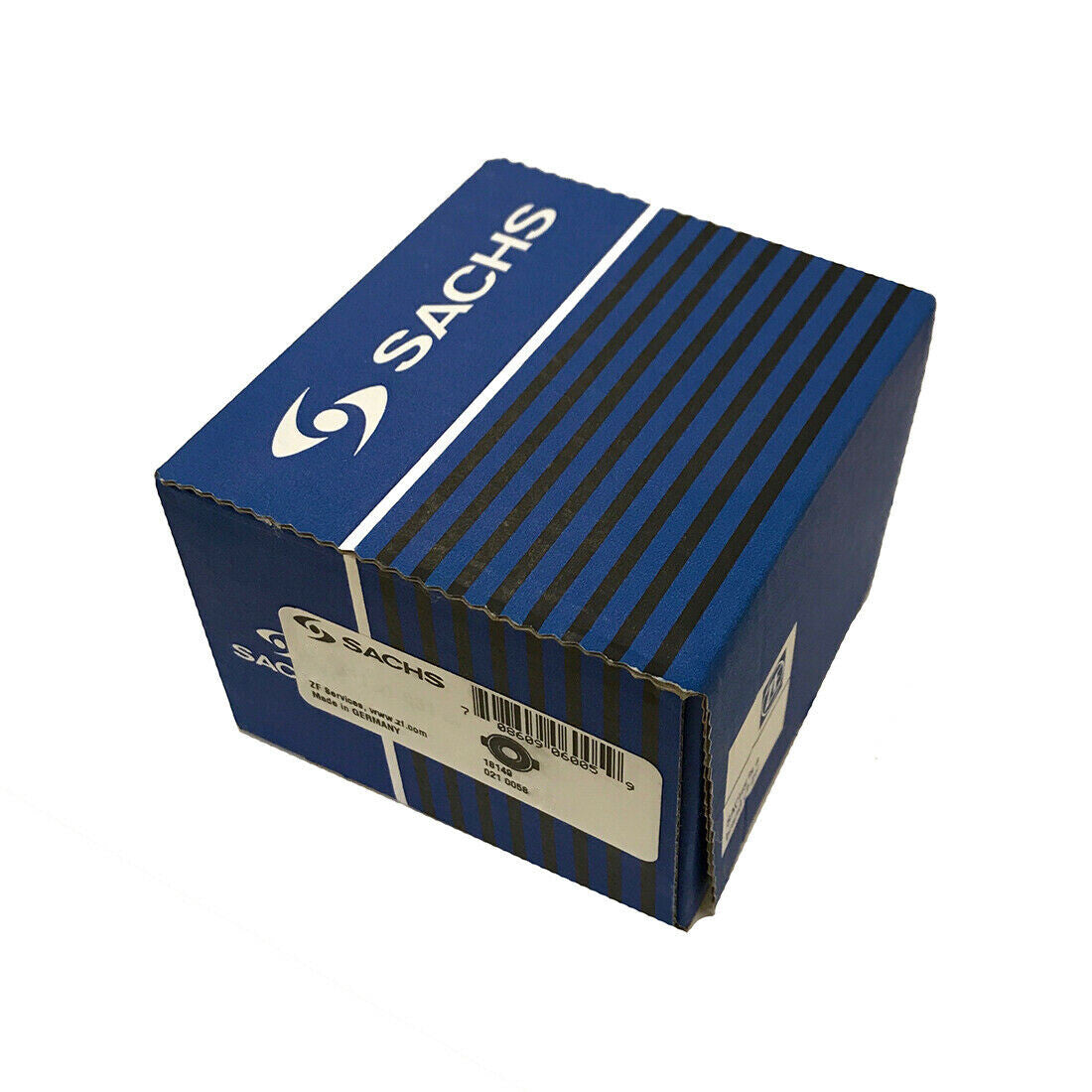

• Brand new SACHS Clutch Release Bearing (RBN3833)
• Pilot Bearing
• Alignment Tool (2 piece type)
• Installation Guide

*This conversion clutch and flywheel set must be used together as a kit without reusing any existing components

Horsepower Rating: 480 HP / Torque Capacity: 462 ft/lbs

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.

• Ultra heavy-duty and weighs only 15.85 lbs
• Includes a set of 8 ea. flywheel mounting bolts
• Meets or exceeds SFI 1.1 specification
• Made from 4140 forged chromoly steel (2X stronger than billet steel)
• FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
• CAD designed, CNC machined and computer balanced

VEHICLE APPLICATION
1999 - 2000 BMW 323i 4 door sedan (E46, 2.5L 6cyl)
2000 - 2000 BMW 323ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325i 4 door sedan (E46, 2.5L 6cyl)
2001 - 2003 BMW 325ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325xi 4WD 4 door sedan (E46, 2.5L 6cyl)
4/1999 - 2000 BMW 328i 4 door sedan (E46, 2.8L 6cyl)
2000 - 2000 BMW 328ci 2 door coupe (E46, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 330i 4 door sedan (E46, 3.0L 6cyl, fits 5 speed only)
2001 - Mar/ 2003 BMW 330ci 2 door coupe (E46, 3.0L 6cyl, fits 5 speed only)
2001 - Mar/ 2003 BMW 330xi 2 door coupe (E46, 3.0L 6cyl, fits 5 speed only)
2001 - 2003 BMW 525i (E39, 2.5L 6cyl)
4/1999 - 2000 BMW 528i (E39, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 530i (E39, 3.0L 6cyl; fits 5 speed only)
1999 - 2002 BMW Z3 (E36, 2.5L DOHC 6cyl)
2001 - 2002 BMW Z3 (E36, 3.0L DOHC 6cyl)
2003 - 10/2003 BMW Z4 (E85, E86 2.5 6cyl)
*This conversion clutch and flywheel set must be used together as a kit without reusing any existing components
