FX Racing Stage 1 clutch kit is an upgrade heavy-duty clutch set up for those who seeks streetable high performance clutch. It is a direct factory replacement parts thus no modifications are needed. The clutch kit includes only the highest grade components and it's ready for hot action on street and track. The premium organic friction material for high heat tolerance, quick recovery, good friction and long life. The heavy-duty solid center unit boasts heat treated hub and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

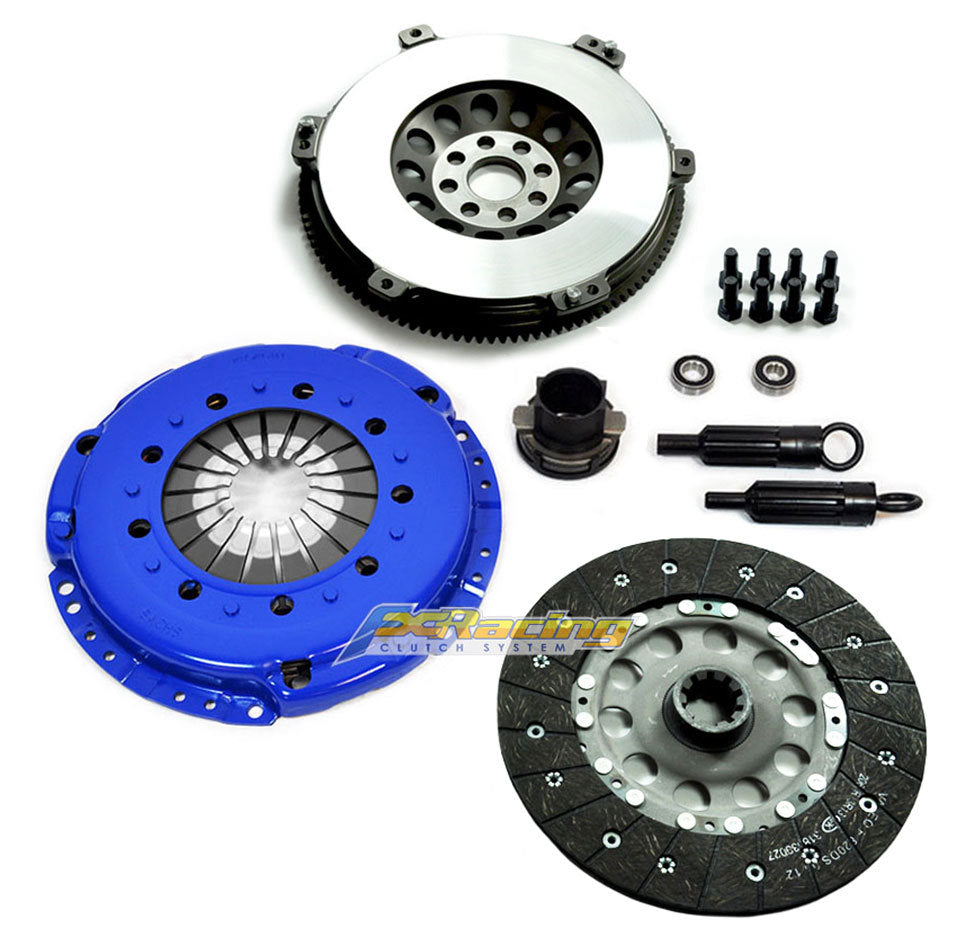

THIS COMPLETE CLUTCH KIT INCLUDES:

• FX Racing Heavy-Duty Pressure Plate
• FX Racing Stage 1 HD Organic Rigid Disc (240mm, 10 spline, 1-1/8")
• Release Bearing
• Pilot Bearing
• Alignment Tool
• Installation Guide

Horsepower Rating: 342 HP / Torque Capacity: 315 ft/lbs

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.

• Ultra heavy-duty and weighs only 14.45 lbs
• Includes a set of brand new 8 ea. flywheel bolts
• Meets or exceeds SFI 1.1 specification
• Made from 4140 forged chromoly steel
• FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
• CAD designed, CNC machined and computer balanced
• NOTE: Replacement of dual mass flywheel may cause added gear noise.

Important Note: The clutch kit and flywheel must be used together as a conversion kit.

VEHICLE APPLICATION
Fits 1998 - 1999 BMW 323i convertible 2 door (E36, 2.5L 6cyl)
Fits 1998 - 1999 BMW 323is 2 door coupe (E36, 2.5L 6cyl)
Fits 1992 - 1995 BMW 325i; 325is (E36, 2.5L M50)
Fits 1994 - 1995 BMW 325i convertible (E36, 2.5L M50)
Fits 1996 - 1998 BMW 328i 4door sedan (E36, 2.8L DOHC 6cyl)
Fits 1996 - 1999 BMW 328is; 328i convertible (E36, 2.8L DOHC 6cyl)
Fits 1991 - 1995 BMW 525i ; 525i Wagon (E34, 2.5L M50)
Fits 1997 - 1998 BMW 528i (E39, 2.8L M52)
Fits 1995 - 1999 BMW M3 (E36, 3.0L S50; 3.2L S52)
Fits 1997 - 1998 BMW Z3 Coupe; Roadster (E36, 2.8L M52)
Fits 1998 - 2002 BMW Z3 M Coupe; Z3 M Roadster (E36, 3.2L S52)
