FX Racing Stage 3 clutch kit is a direct factory replacement clutch kit and it's designed for those who seek the ultimate in clutch performance and reliability. FX Racing clutch kit includes only the highest grade clutch components from the world's leading racing clutch manufacturers. The 6-puck copper ceramic (also known as MIBA) disc features 12 high-coefficient friction pads that are resistant to slippage and ensures long lasting life. The heavy-duty sprung center unit boasts heat treated springs and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

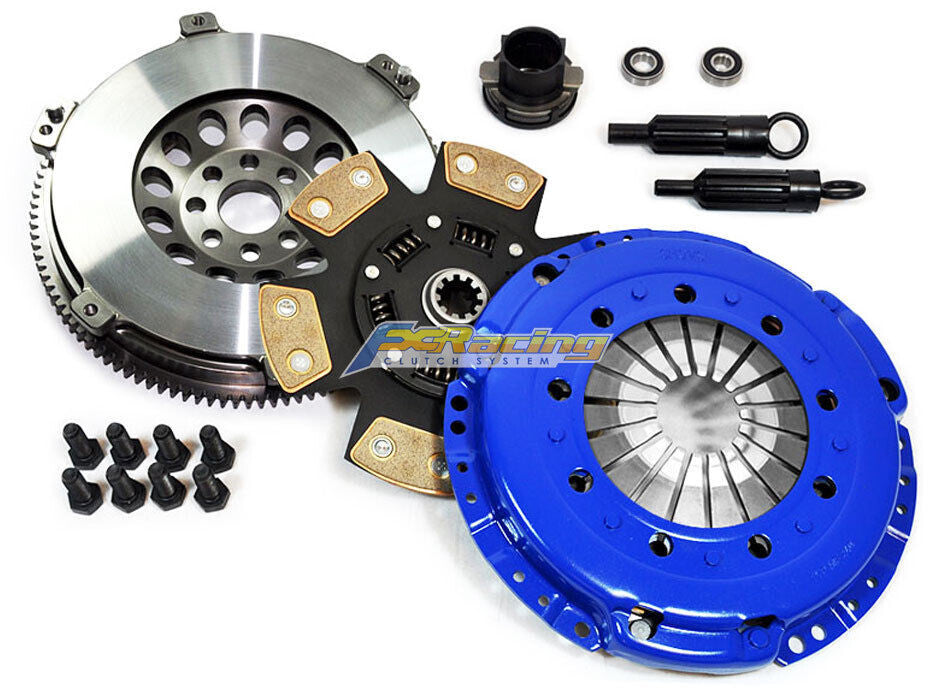

THIS COMPLETE CLUTCH KIT INCLUDES:

• **This is a Retro-Fit Kit**
• FX Racing Heavy-Duty Pressure Plate
• FX Racing Stage 3 HD 6-Puck Copper Ceramic Sprung Disc (240mm , 10 spline)
• Release Bearing
• Sachs Pilot Bearing
• Alignment Tool
• Installation Guide

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.

• Ultra heavy-duty and weighs only 14.45 lbs
• Includes a set of 8 ea. flywheel mounting bolts
• Meets or exceeds SFI 1.1 specification
• Made from 4140 forged chromoly steel (2X stronger than billet steel)
• FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
• CAD designed, CNC machined and computer balanced
• NOTE: Replacement of dual mass flywheel may cause added gear noise

VEHICLE APPLICATION
1999 - 2000 BMW 323i 4 door sedan (E46, 2.5L 6cyl)
2000 - 2000 BMW 323ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325i 4 door sedan (E46, 2.5L 6cyl)
2001 - 2003 BMW 325ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325xi 4WD 4 door sedan (E46, 2.5L 6cyl)
4/1999 - 2000 BMW 328i 4 door sedan (E46, 2.8L 6cyl)
2000 - 2000 BMW 328ci 2 door coupe (E46, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 330i 4 door sedan (E46, 3.0L 6cyl; fits 5 speed only)
2001 - Mar/ 2003 BMW 330ci 2 door coupe (E46, 3.0L 6cyl; fits 5 speed only)
2001 - 2002 BMW 525i (E39, 2.5L 6cyl)
4/1999 - 2000 BMW 528i (E39, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 530i (E39, 3.0L 6cyl; fits 5 speed only)
1999 - 2002 BMW Z3 (E36, 2.5L DOHC 6cyl)
2001 - 2002 BMW Z3 (E36, 3.0L DOHC 6cyl)
