FX Stage 3 CLUTCH SET & CHROMOLY FLYWHEEL for 01-12 FORD RANGER 2.3L Mazda B2300

$249.00

Brand: FX Racing
Availability: 7 In Stock
SKU: FX-85108R3-SS; 85160FC-MV #27






Item Description | Vehicle Application | Shipping & Handling | Payment Details | Return Policy | About Us
About this item
FX Racing Stage 3 clutch kit is a direct factory replacement clutch kit and it's designed for those who seek the ultimate in clutch performance and reliability. FX Racing clutch kit includes only the highest grade clutch components from the world's leading racing clutch manufacturers. The 6-puck copper ceramic (also known as MIBA) disc features 12 high-coefficient friction pads that are resistant to slippage and ensures long lasting life. The heavy-duty sprung center unit boasts heat treated springs and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.
  • This complete clutch kit includes:


  • FX Racing 4140 Chromoly Lightweight Flywheel (12.66 lbs / STOCK 26 lbs)
  • FX Racing Heavy-Duty Pressure Plate
  • FX Racing Stage 3 'MIBA' 6-Puck Copper Ceramic Sprung Disc (228mm, 23 splines)
  • FX Racing HD Release Bearing
  • FX Racing HD Pilot Bearing
  • Brand new Alignment Tool
  • Basic Installation Guide
Horsepower Rating: 258CHP / Torque Capacity: 279 ft/lbs

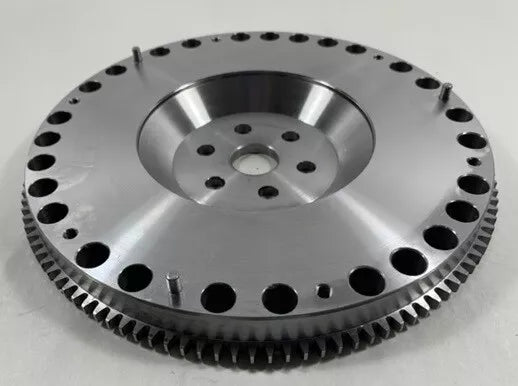

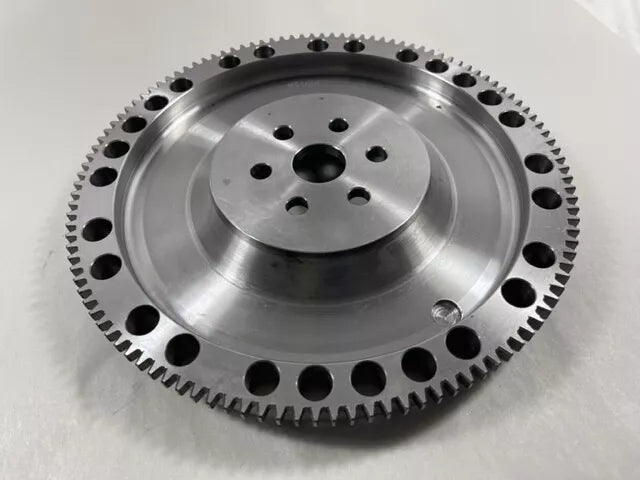

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.
  • Ultra heavy-duty and weighs only 12.66 lbs
  • Meets or exceeds SFI 1.1 specification
  • Made from 4140 forged chromoly steel (2X stronger than billet steel)
  • FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
  • FX Racing Lightweight Chromoly flywheels work with every clutch including Exedy, ACT, Fidanza, Clutchmasters, and other OEM clutch kits
  • CAD designed, CNC machined and computer balanced


Back to Top
Vehicle Application
Fits 2001 - 2012 Ford Ranger (2.3L 4cyl)
Fits 2001 - 2010 Mazda B2300 Truck (2.3L 4cyl)

***Note: This is a non self-adjusting type clutch set which replaces factory self-adjusting clutch***
Back to Top
Shipping & Handling
NOTE: Payments received after 4:30 p.m. PST Monday - Friday will be shipped the following business day. Payments received on Weekends and Holidays will be processed and shipped on the following business day.


SHIPPING SERVICES:
U.S.
CANADA
All other International
FREE SHIPPING to Lower 48 States - Via UPS Ground/ USPS Priority.
FREE SHIPPING to AK, HI, PR, PO Box, Guam, U.S. Virgin Islands and Military Address - Via USPS Priority ONLY.
Via UPS Standard. Please select Canada and enter your postal code in the shipping calculator located in the Shipping and payment tab above to obtain your shipping rate. Via UPS. Please select your country in the shipping calculator located in the Shipping and payment tab above to obtain your shipping rate.
Back to Top
Payment Details



Orders shipped to California address are required to pay a CA sales tax.PayPal payment can only be shipped to an address you entered at the time of check out.
International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. In some instances, please expect delays due to customs.
Back to Top
About Us
Major distributor of world's leading clutch manufacturers since 1999 including:


Largest clutch seller on eBay with best feedback.Industry leading customer service. All inquiries responded within 24 hours.We stock over $2,000,000 of top quality products.Offers industry's best 12 months or 12,000 miles manufacturer defect warranty.Thousands of clutch parts in stock ready to ship.
Back to Top



Performance Part: Yes

Input Spline Quantity: 23

Country/Region of Manufacture: United States

Interchange Part Number: EXEDY LUK KFM07 KFM06 07-140 07-141 07-116,167760 LFW160

Plate Diameter: 228mm, 23 splines

Vintage Part: No

Type: Clutch Kit + Flywheel Bundle Set

Disc Diameter: 228mm, 23 splines

Flywheel Material: 4140 Forged Chromoly Steel 116T

Other Part Number: LFW160

Manufacturer Part Number: FX-85108R3 + 85160FC #27

Input Shaft Diameter: 1"

Disc Material: Cerametallic

Fitment Type: Performance/Custom

Warranty: 1 Year

Transmission Type: Manual

Clutch Material: Cerametallic

Pressure Plate Type: Heavy Duty Push Type Diaphragm

OE Spec or Performance/Custom: Performance/Custom

Clutch Disc Style: 6 Puck Sprung Disc

Brand: FX Racing

Manufacturer Warranty: 1 Year

Surface Finish: Cerametallic / 4140 FORGED CHROMOLY STEEL

Number of Teeth: 23
