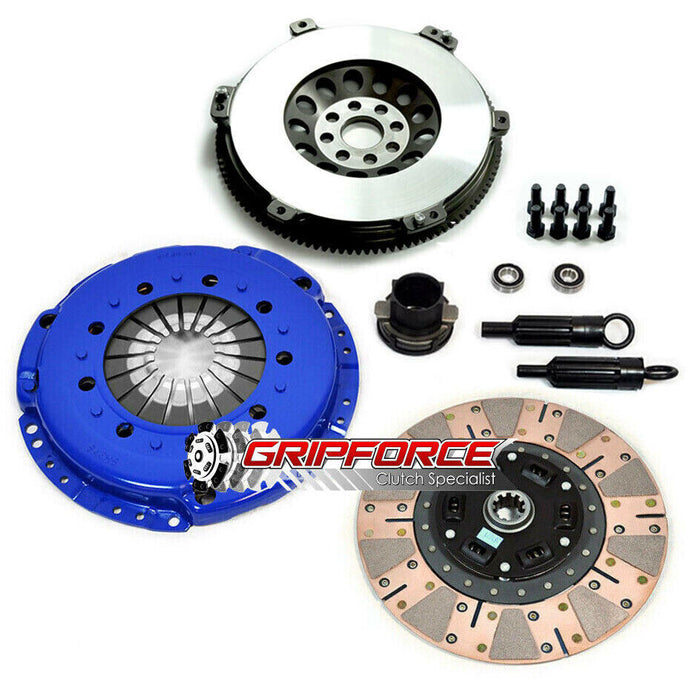

FX TWIN-FRICTION CLUTCH KIT w/ LITE FLYWHEEL for 01-03 BMW 525 530 i E39 M52 M54

$409.00

Brand: Gripforce
Availability: 7 In Stock
SKU: FX-04118DF-SS; 04117FC-MV #32 (04120)






Item Description | Vehicle Application | Shipping & Handling | Payment Details | Return Policy | About Us
About this item
FX Racing Dual-Friction clutch kit comes with a full facing on the flywheel side for drivability and longevity, while a copper ceramic composite puck style (segmented) facing is used on the pressure plate side for a positive engagement and increased holding-capacity. Multi Friction is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Multi Friction has been engineered primarily as a street clutch it can be used in mild competition applications. FX Racing specifically designed high torque disc delivers maximum holding capacity without compromise. The sprung retainer assembly boasts heat treated 6 dual springs and severe duty retainer rivets, ensuring power and reliability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

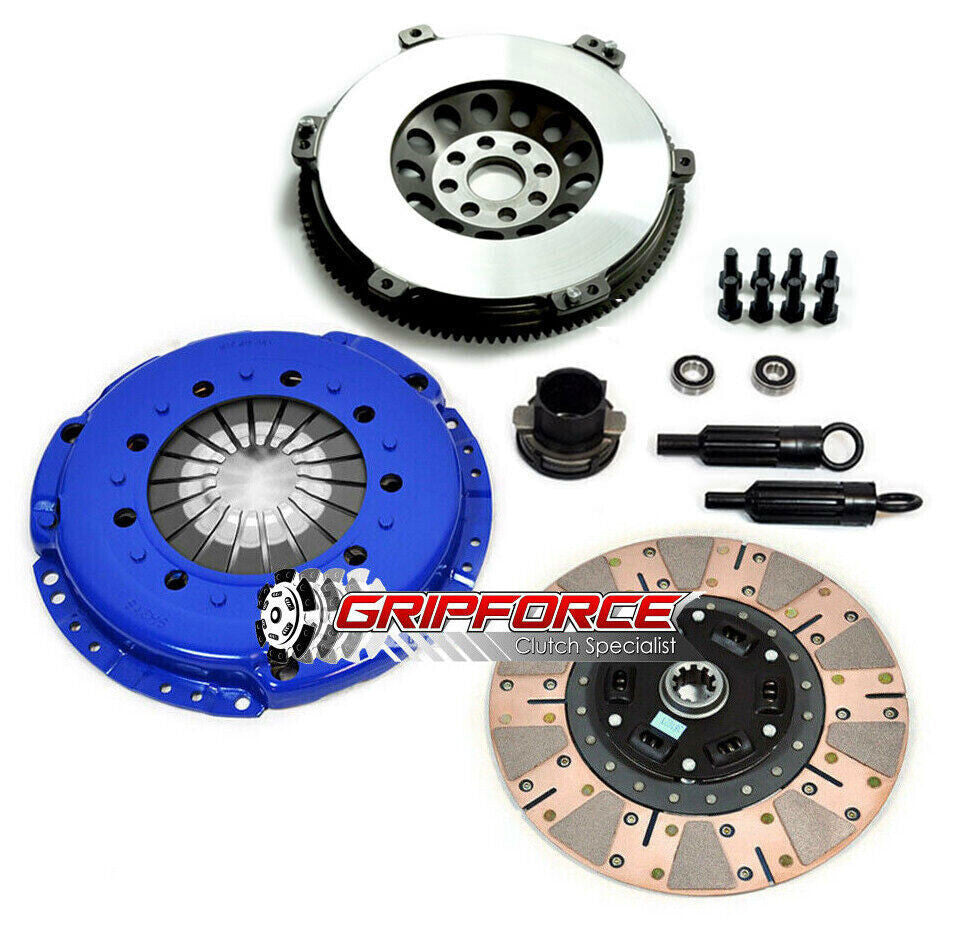

  • This complete clutch kit includes:


  • **This is a Retro-Fit Kit**
  • FX Racing HD Pressure Plate
  • FX Racing Heavy-Duty Dual-Fricion Clutch Disc (240mm, 10 spline)
  • Release Bearing
  • Pilot Bearing
  • Alignment Tool (2 piece type)
  • Installation Guide

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece forged chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.
  • Ultra heavy-duty and weighs only 14.45 lbs
  • Includes a set of brand new 8 ea. flywheel mounting bolts.
  • Meets or exceeds SFI 1.1 specification
  • Made from 4140 forged chromoly steel (2X stronger than billet steel)
  • Special design features to enhance the airflow for improved clutch cooling.
  • CAD designed, CNC machined and computer balanced.
  • NOTE: Replacement of dual mass flywheel may cause added gear noise.




Back to Top
Vehicle Application
1999 - 2000 BMW 323i 4 door sedan (E46, 2.5L 6cyl)
2000 - 2000 BMW 323ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325i 4 door sedan (E46, 2.5L 6cyl)
2001 - 2003 BMW 325ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325xi 4WD 4 door sedan (E46, 2.5L 6cyl)
4/1999 - 2000 BMW 328i 4 door sedan (E46, 2.8L 6cyl)
2000 - 2000 BMW 328ci 2 door coupe (E46, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 330i 4 door sedan (E46, 3.0L 6cyl; fits 5 speed only)
2001 - Mar/ 2003 BMW 330ci 2 door coupe (E46, 3.0L 6cyl; fits 5 speed only)
2001 - 2002 BMW 525i (E39, 2.5L 6cyl)
4/1999 - 2000 BMW 528i (E39, 2.8L 6cyl)
2001 - Mar/ 2003 BMW 530i (E39, 3.0L 6cyl; fits 5 speed only)
1999 - 2002 BMW Z3 (E36, 2.5L DOHC 6cyl)
2001 - 2002 BMW Z3 (E36, 3.0L DOHC 6cyl)
Back to Top
Shipping & Handling
NOTE: Payments received after 4:30 p.m. PST Monday - Friday will be shipped the following business day. Payments received on Weekends and Holidays will be processed and shipped on the following business day.


SHIPPING SERVICES:
U.S.
CANADA
All other International
FREE SHIPPING to Lower 48 States - Via UPS Ground  Via UPS Standard. Please select Canada and enter your postal code in the shipping calculator located in the Shipping and payment tab above to obtain your shipping rate. Via UPS. Please select your country in the shipping calculator located in the Shipping and payment tab above to obtain your shipping rate.
Back to Top
Payment Details



Orders shipped to California address are required to pay a CA sales tax.PayPal payment can only be shipped to an address you entered at the time of check out.
International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. In some instances, please expect delays due to customs.
Back to Top
About Us
Major distributor of world's leading clutch manufacturers since 1999 including FX Racing ACT, Exedy, Valeo, Sachs, LuK, Fidanza and Seco.


Largest clutch seller on eBay with best feedback.Industry leading customer service. All inquiries responded within 24 hours.We stock over $2,000,000 of top quality products.Offers industry's best 12 months or 12,000 miles manufacturer defect warranty.Thousands of clutch parts in stock ready to ship.



Business Hours: 9AM - 6PM Monday - Friday (Pacific Standard Time)
Email: Please contact us through eBay message by clicking on "Ask a question"
Back to Top





Clutch Disc Style: Full Face Dual Friction Disc

OE Spec or Performance/Custom: Performance/Custom

Warranty: 1 Year

Fitment Type: Direct Replacement

Manufacturer Part Number: FX-04118DF-SS; 04117FC-MV

Bundle Listing: Yes

Vintage Part: No

Transmission Type: Manual

Pressure Plate Type: Heavy Duty Push Type Diaphragm

Brand: FX Racing

Number of Teeth: 10

Flywheel Material: 4140 Forged Chromoly Steel

Type: Clutch Kit

Interchange Part Number: 03-047 03-049 K70280-01 K70288-02 195461 DMF019

Input Spline Quantity: 10

OE/OEM Part Number: 03-047 03-049 K70280-01 K70288-02 195461 DMF019

Manufacturer Warranty: 1 Year

Disc Diameter: 240mm, 10 spline

Surface Finish: Cerametallic + Carbon Kevlar; FORGED CHROMOLY STEEL

Clutch Material: Cerametallic + Carbon Kevlar

Disc Material: Cerametallic + Carbon Kevlar

Country/Region of Manufacture: United States

Performance Part: Yes
